LWAD2507
LINKWORLD
| Availability: | |
|---|---|
Product Description
| Product size | M: 680X450 L: 800X650 XL: 950X760(Customixed according to customer requirement) |
| Product structure | Product structure: upper & lower tissue, cotton core (mix with SAP), cover sheet hydrophilic non-woven , ADL (Acquisitiondistribution layer) non-woven,leak guard hydrophobic non-woven back sheet,Waist band non-woven,color pattern sticker,elastic waist band, discarding sticker. |
| Control system | PLC control system,HMI Operating on the LED touch screen,Configure HDTV monitor |
| Drive system | Servo Drive(Easy to change size), timing belt and flat belt are import products, and all the key parts, are import bearings. |

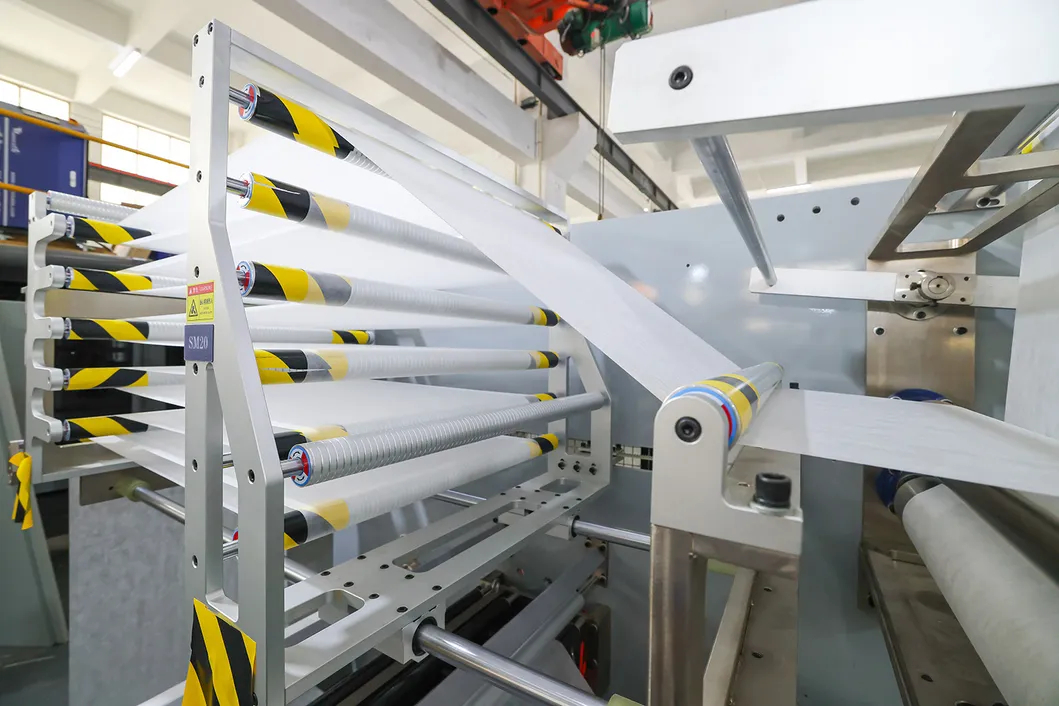

| Tension system | Top tissue paper,bottom tissue paper,hydrophobic nonwoven(leg cuff),top nonwoven,ADL,back sheet,elastic nonwoven are adopt A&B |
| shaft active unwinding by inverter motor. | |
| Safety system | It has safety device on the operating side, matched with urgent stop switch.High audio fan uses sound insulation or silencer. |
| Packaging system | according to customer requirements with palletizer machine (double push double exit ) adjustable |
| Materials corrective system | Materials corrective system: Adopt international famous brand deviation correction system |
| Power | 380V, 50HZ three phase five wire |
| Machine Capacity | 360KW (Excluding glue machine and air compressor) |
| Bleed pressure | 0.6-0.8Mpa (Air compressor needs to be prepared by customers) |
| Machine weight | 100Tons approximately |
